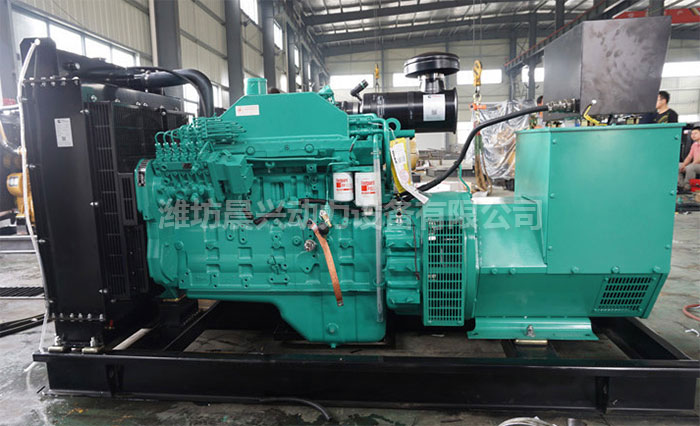

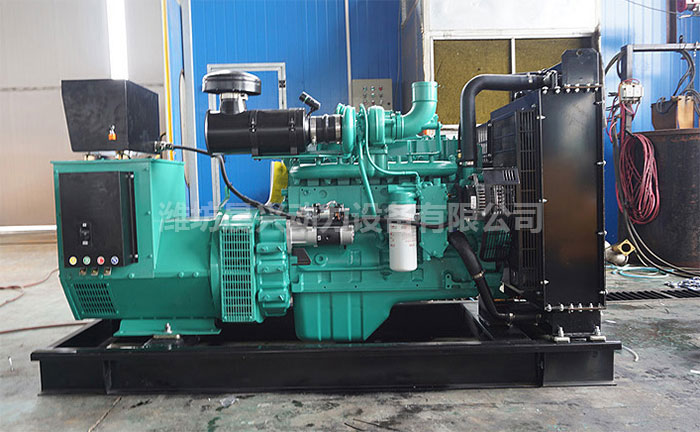

150KW Generating Set

Generating set parameters

Generating set parameters

Generator parameters

Unit model

150GF

Model

6CTA8.3-G2

Model

150GF

Output power

150kw

Air intake type

Turbocharge

Rated power

150kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

6/L

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

114/135

Rated voltage

400V/230V

Output current

270A

Compression ratio

17.3:1

Output current

270A

Rated frequency

50Hz

Rated power/rotating speed kW/r/min

150/1500

Rated power/rotating speed

50Hz

Steady voltage regulation (%)

≤±1

Steady voltage regulation (%) kW/r/min

163/1500

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.5

Fuel consumption rate g/(kW·h)

≤209

Protection grade

IP22

Transient voltage regulation (%)

＋20～－15

Lubrication method

Pressure, splash hybrid

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time（s）

≤1

Startup method

Electric starting

Regulating mode

Automatic voltage regulator (AVR)
