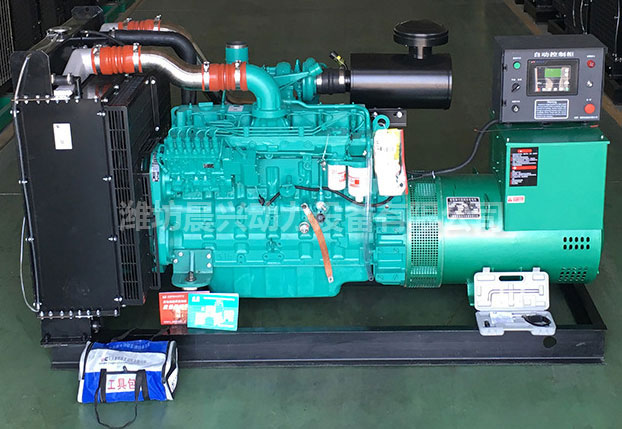

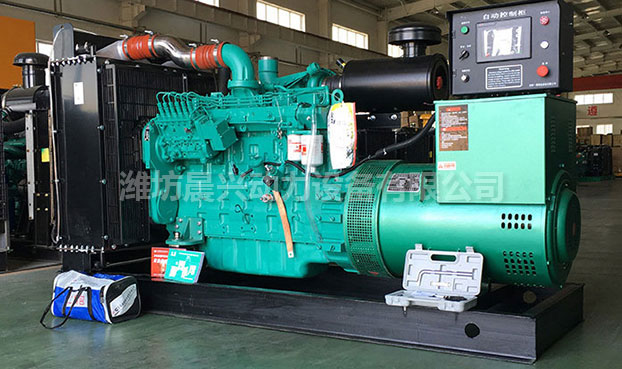

200KW Generating Set

Generating set parameters

Generating set parameters

Generator parameters

Unit model

200GF

Model

NT855-GA

Model

200GF

Output power

200kw

Air intake type

Turbocharge

Rated power

200kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

6/L

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

140/152

Rated voltage

400V/230V

Output current

360A

Compression ratio

14.5:1

Output current

360A

Rated frequency

50Hz

Rated power/rotating speed kW/r/min

200/1500

Rated power/rotating speed

50Hz

Steady voltage regulation (%)

≤±1

Steady voltage regulation (%) kW/r/min

254/1500

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.5

Fuel consumption rate g/(kW·h)

≤200

Protection grade

IP22

Transient voltage regulation (%)

＋20～－15

Lubrication method

Pressure, splash hybrid

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time（s）

≤1

Startup method

Electric starting

Regulating mode

Automatic voltage regulator (AVR)
