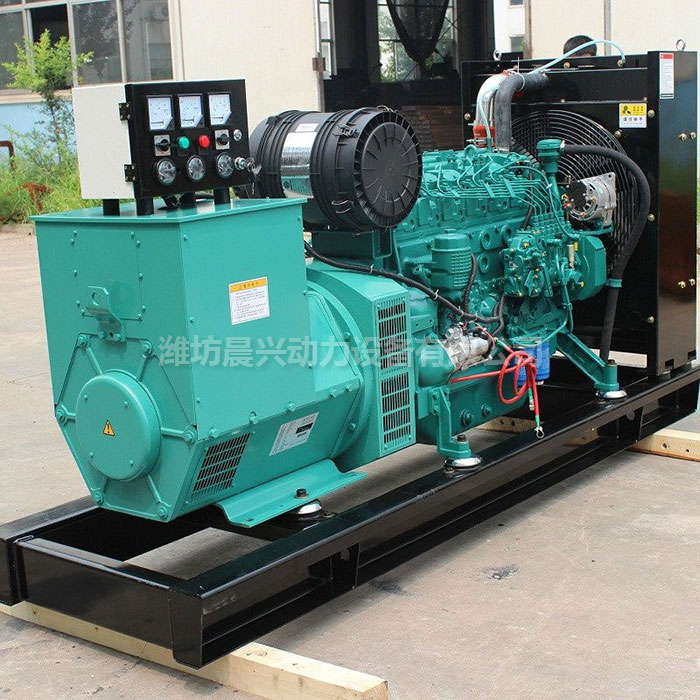

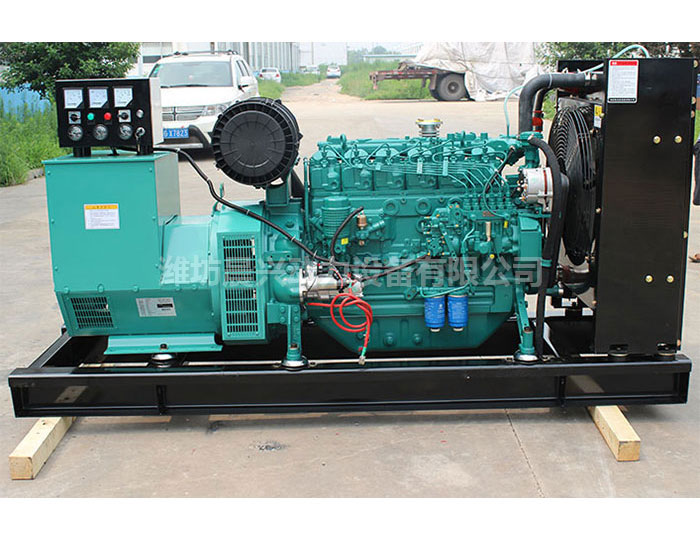

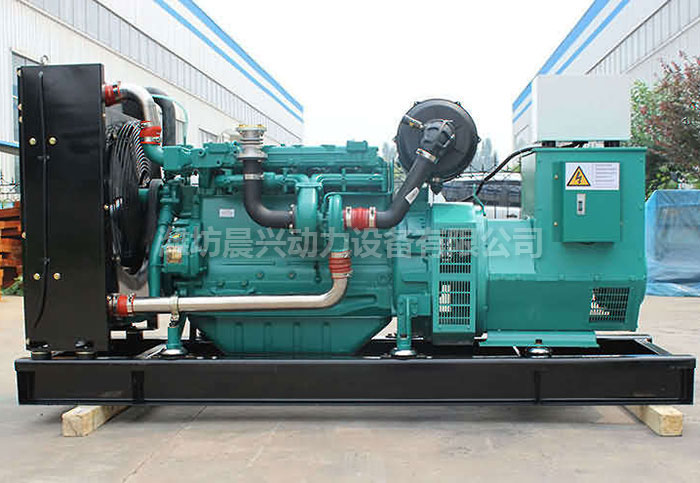

Weichai 100 kw generating set

Generating set parameters

Parameters of the Diesel Engine

Generator parameters

Unit model

100GF

Unit model

WP4D108E200

Unit model

100GF

Output power

100kw

Air intake type

Turbocharge

Rated power

100kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

4

Output factor (Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

105/130

Rated voltage

400V/230V

Output current

180A

Compression ratio

18:1

Output current

180A

Rated frequency

50Hz

Rated power/rotating speed kW/r/min

100/1500

Rated frequency

50Hz

Steady voltage regulation (%)

≤±1

Power/revolving speed for 1 hour kW/r/min

108/1500

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.5

Fuel consumption rate g/(kW·h)

≤220

Protection grade

IP22

Transient voltage regulation (%)

＋20～－15

Lubrication method

Pressure, splash hybrid

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time（s）

≤1

Startup method

Electric starting

Regulating mode

Automatic voltage regulator (AVR)
