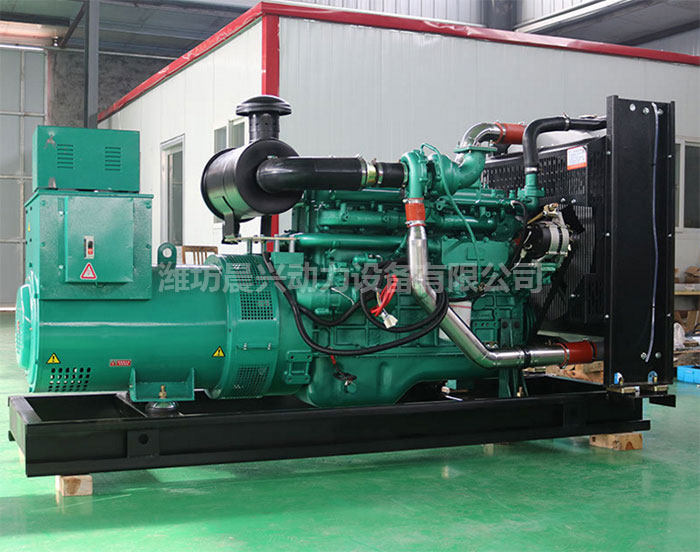

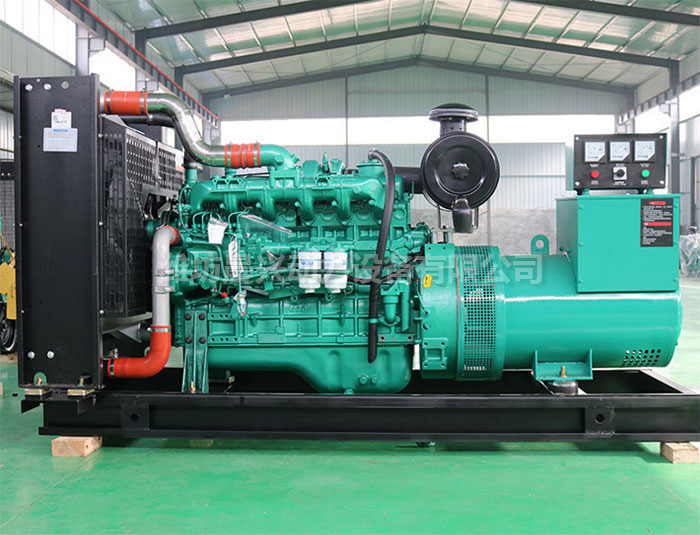

Yuchai 100KW generating set

Generating set parameters

Parameters of the Diesel Engine

Generator parameters

Unit model

100GF

Model

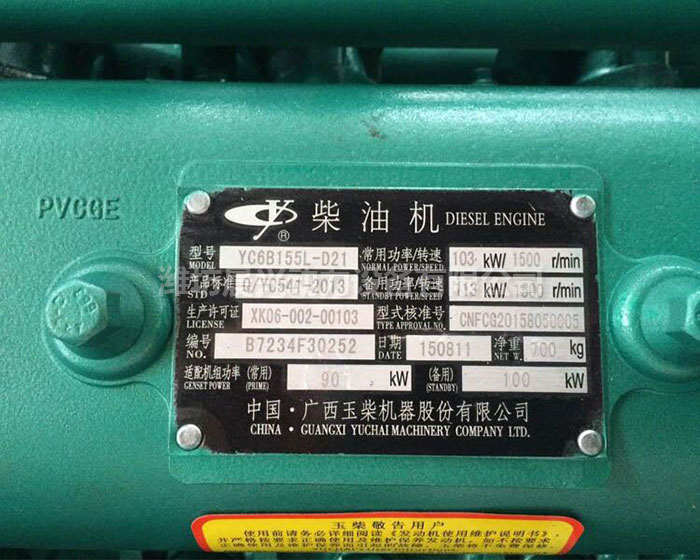

YC6B155L-D21

Model

100GF

Output power

100kw

Air intake type

Charge inter-cooling

Rated power

100kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

6

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

108×125

Rated voltage

400V/230V

Output current

180A

Total displacement  L

6.871

Output current

180A

Rated frequency

50Hz

Compression ratio

17.5:1

Rated frequency

50Hz

Steady voltage regulation (%)

≤±1

Rated power/rotating speed kW/r/min

103/1500

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.5

Power/revolving speed for 1 hour kW/r/min

113/1500

Protection grade

IP22

Transient voltage regulation (%)

＋20～－15

Fuel consumption rate g/(kW·h)

≤200

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time （s）

≤1

Engine oil capacity  L

14-17

Regulating mode

Automatic voltage regulator (AVR)
