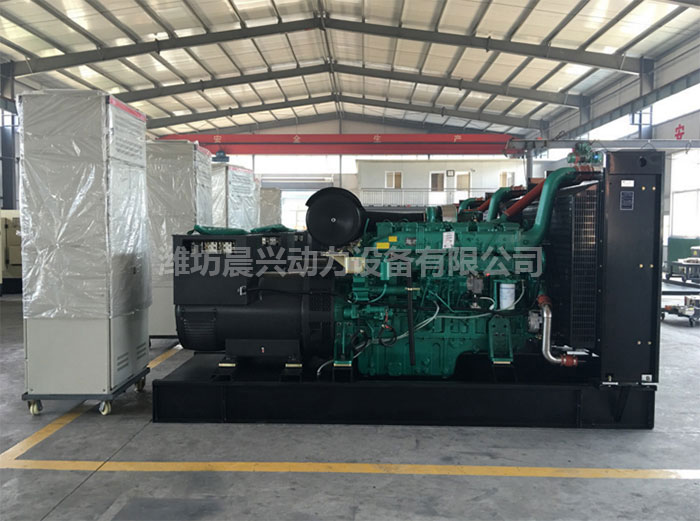

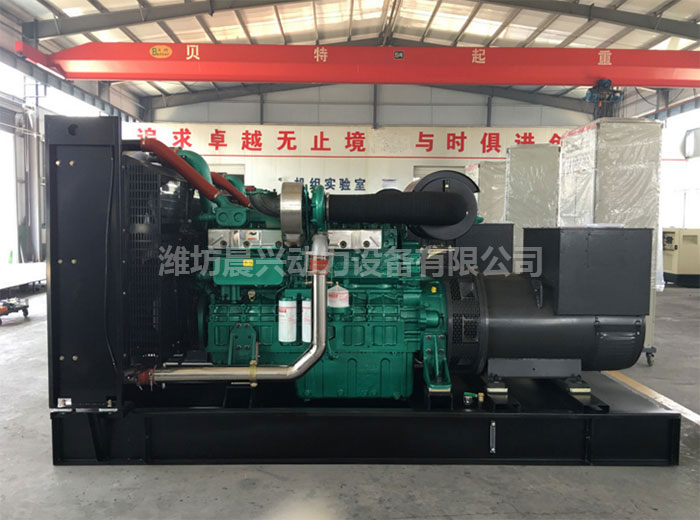

500KW Generating Set

Generating set parameters

Parameters of the Diesel Engine

Generator parameters

Unit model

500GF

Model

YC6TD840L-D20

Model

500GF

Output power

500kw

Air intake type

Charge inter-cooling

Rated power

500kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

6

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

152×180

Rated voltage

400V/230V

Output current

900A

Number of cylinders

4

Output current

900A

Rated frequency

50Hz

Total displacement L

19.6

Rated frequency

50Hz

Steady voltage regulation (%)

≤±1

Compression ratio

14:1

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.5

Rated power/rotating speedkW/r/min

560/1500

Protection grade

IP22

Transient voltage regulation (%)

＋20～－15

Power/revolving speed for 1 hour kW/r/min

616/1500

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time（s）

≤1

Fuel consumption rate g/(kW·h)

≤195

Regulating mode

Automatic voltage regulator (AVR)
