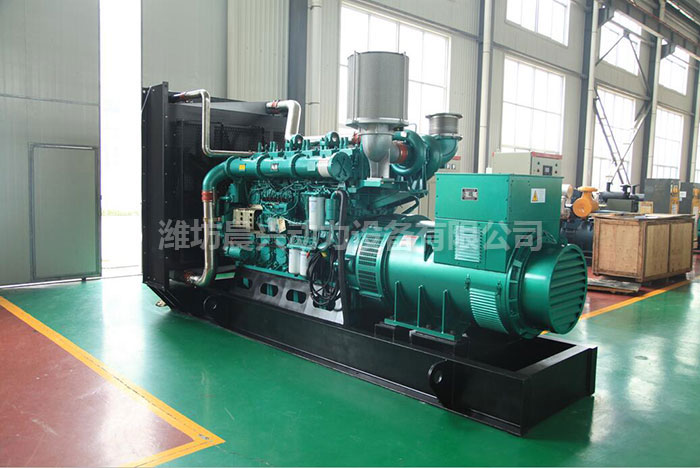

Yuchai 800KW generating set

Generating set parameters

Parameters of the Diesel Engine

Generator parameters

Unit model

800GF

Model

YC6C1320L-D20

Model

800GF

Output power

800kw

Air intake type

Charge inter-cooling

Rated power

800kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

6

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

200×210

Rated voltage

400V/230V

Output current

1440A

Number of cylinders

4

Output current

1440A

Rated frequency

50Hz

Total displacement L

39.58

Rated frequency

50Hz

Steady voltage regulation (%)

≤±1

Compression ratio

14.5:1

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.5

Rated power/rotating speedkW/r/min

880/1500

Protection grade

IP22

Transient voltage regulation (%)

＋20～－15

Power/revolving speed for 1 hour kW/r/min

968/1500

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time（s）

≤1

Fuel consumption rate g/(kW·h)

≤195

Regulating mode

Automatic voltage regulator (AVR)
