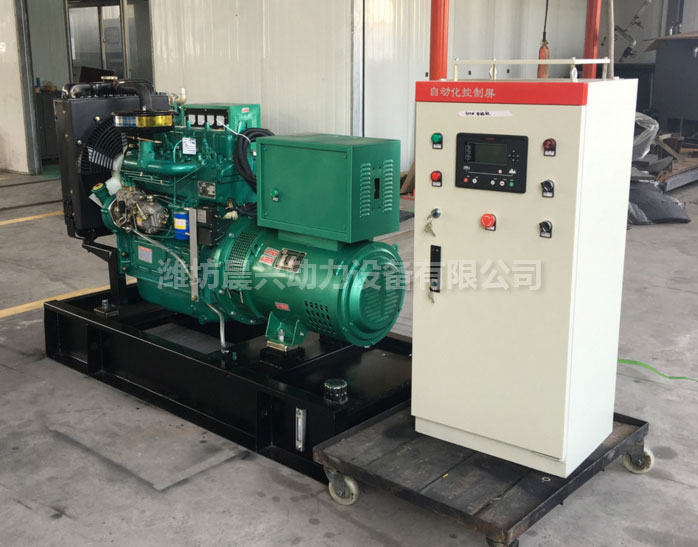

30KW Generating Set

Generating set parameters

Parameters of the Diesel Engine

Generator parameters

Unit model

30GF

Model

K4100D

Model

30GF

Output power

30kw

Air intake type

Turbocharge

Rated power

30kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

4

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

100/115

Rated voltage

400V/230V

Output current

54A

Compression ratio

19:1

Output current

54A

Rated frequency

50Hz

Rated power/rotating speed kW/r/min

30/1500

Rated frequency

50Hz

Steady voltage regulation (%)

≤±2.5

Power/revolving speed for 1 hour kW/r/min

33/1500

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.3

Fuel consumption rate g/(kW·h)

≤220

Protection grade

IP22

Transient voltage regulation (%)

＋25～－30

Lubrication method

Pressure, splash hybrid

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time （s）

≤6

Startup method

Electric starting

Regulating mode

Automatic voltage regulator (AVR)
