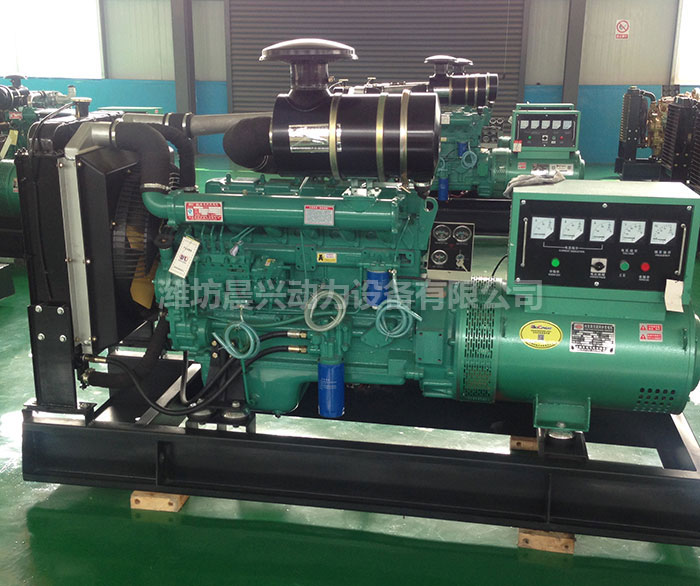

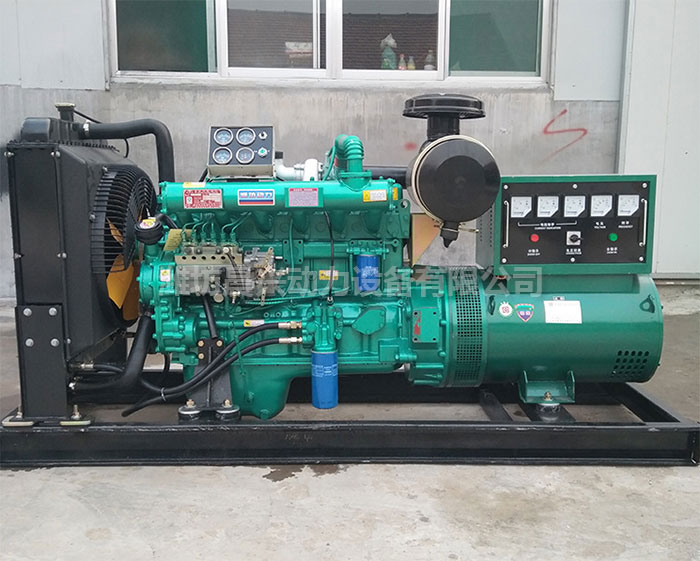

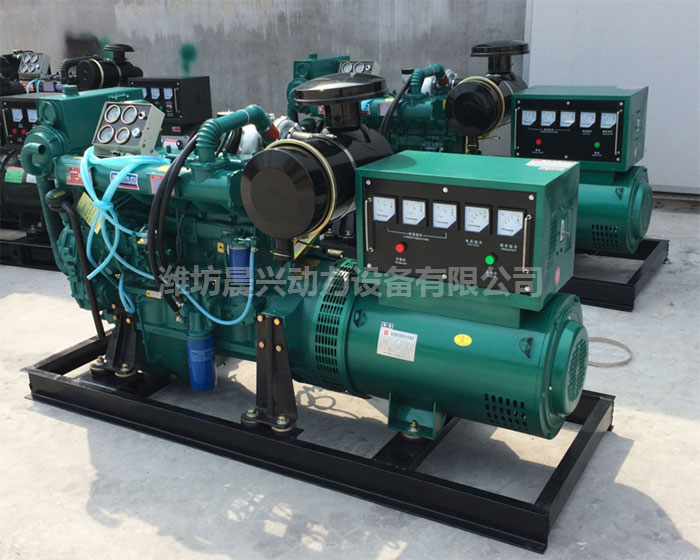

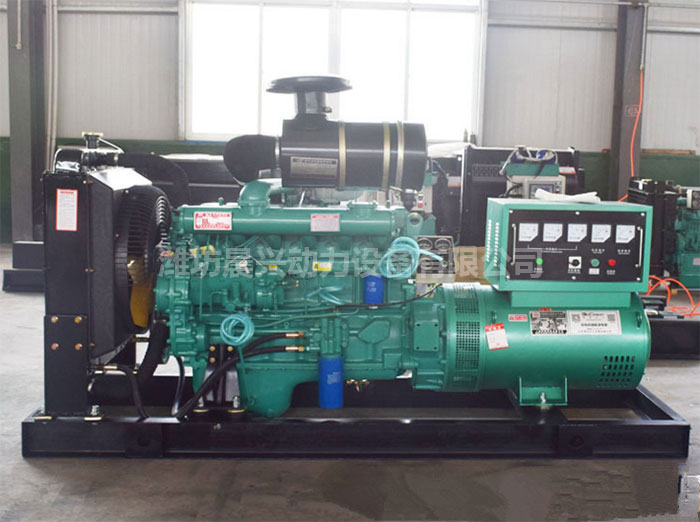

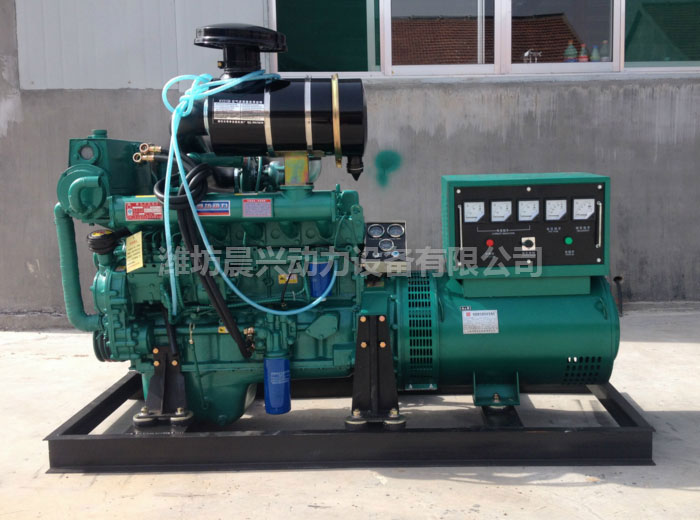

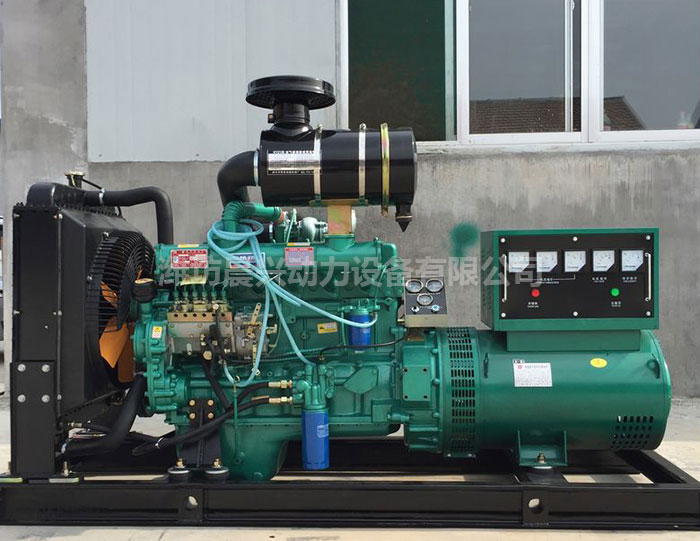

75KW Generating Set

Generating set parameters

Parameters of the Diesel Engine

Generator parameters

Unit model

75GF

Model

R6105ZD

Model

75GF

Output power

75kw

Air intake type

Turbocharge

Rated power

75kw

Power factor

COSΦ=0.8(Lagging)

Number of cylinders

6

Output factor(Lagging)

COSΦ=0.8

Output voltage

400V/230V

Cylinder diameter * stroke (mm)

105/125

Rated voltage

400V/230V

Output current

135A

Compression ratio

16:1

Output current

135A

Rated frequency

50Hz

Rated power/rotating speed kW/r/min

75/1500

Rated frequency

50Hz

Steady voltage regulation (%)

≤±2.5

Power/revolving speed for 1 hour kW/r/min

92/1500

Insulation level

H Number

Voltage fluctuation rate (%)

≤±0.3

Fuel consumption rate g/(kW·h)

≤220

Protection grade

IP22

Transient voltage regulation (%)

＋25～－30

Lubrication method

Pressure, splash hybrid

Wiring method

Three-phase and four-line, Y type connection

Voltage settling time （s）

≤6

Startup method

Electric starting

Regulating mode

Automatic voltage regulator (AVR)
