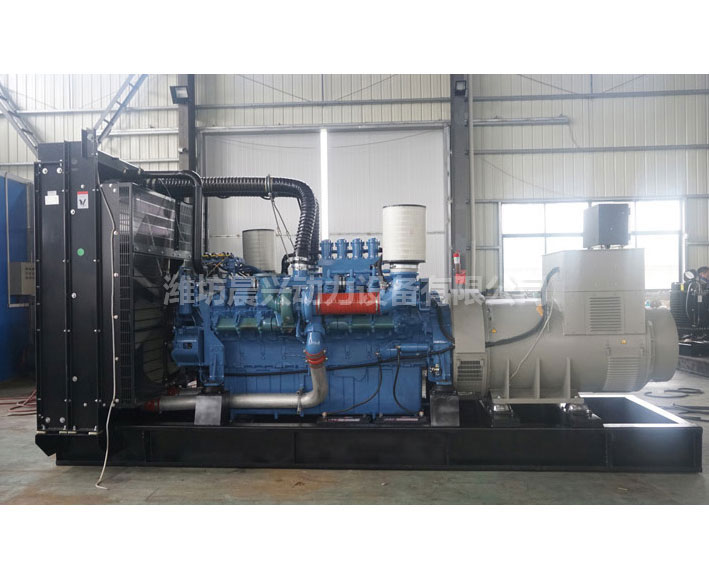

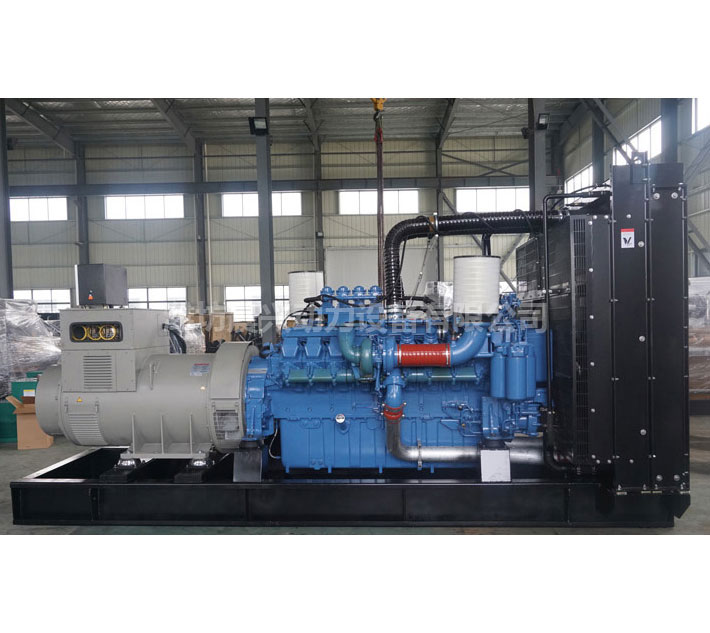

Benz 900kw diesel generating set

I. Technical Parameters of 18V2000G65 Benz 900KW Diesel Generating Set

1.Unit model:GF-900

2.Power of the unit:900KW

3.Generator model:SF-900-4

4.Frequency:50HZ

5.Voltage:400/220V

6.Power factor:COSΦ=0.8

7.Current:1620A

8.Phase number:Three-phase four-wire

9.Noise:≤98db

10.Boundary dimension:4680*1770*2340

11.Weight （KG）:7120

II.Technical Parameters of 18V2000G65 Diesel Engine (900KW)

1.Diesel engine model:18V2000G65

2.Power:910KW

3.Cylinder number:18

4.Cylinder diameter(mm):130

5.Stroke (mm):150

6.Fuel consumption(g/Kw*h)：198

7.Speed mode: Electronic speed regulation

8.Speed （r/min）:1500

9.Air intake mode：Waste turbocharge

10.Cooling method: Closed water cooling

11.Diesel engine manufacturer: Germany

12.Fuel Oil No.: 0 # diesel oil

13.Starting mode: 24V Direct Current Start

14.Diesel engine oil supply way : Direct injection

15.Oil type：WD/40

16.Gas displacement：35.82L

17.Coolant capacity L:222

18.Capacity of lubricating oil (L) : 17

19.Cylinder arrangement mode: Type V

20.Intercooling mode: Water intercooling

21.Engine oil capacity（L）：130
