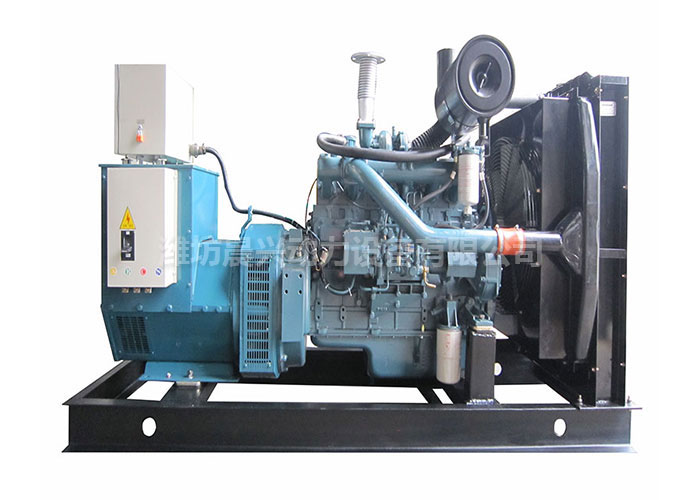

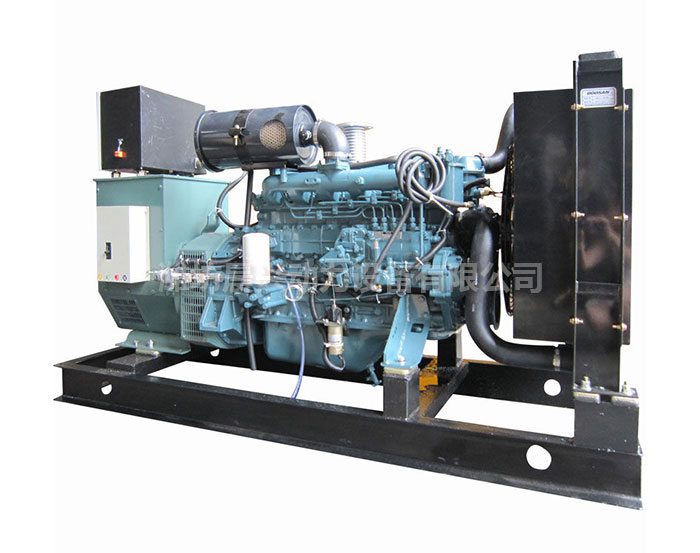

Doosan Daewoo 150kw Diesel Generating Set-P086TI-1

Technical parameters of South Korea's Daewoo series diesel generating sets

I. Technical specification

（1）Unit model: ZD-150

Normal power（KW）：150

Standby power（KW）：164

Frequency: 50Hz

Output voltage: 400/230V

Revolving speed: 1500rpm

Power factor: COSΦ=0.8 (lag)

Fuel consumption（lir/hr）：35.4

Output current（A）：270

Phase number/ line number: Three-phase four-wire

Noise LP7m：100db

Appearance dimension （mm）：2600*870*1100

Weight：2000Kg

（2）Diesel engine:

Brand name: Korea Doosan Daewoo

Manufacturer: Doosan Infracore

Model:P086TI-1

Cooling mode: Closed water circulation cooling

Starting mode: 24V Direct Current Start

Number of cylinders: 6

Oil supply method: Direct injection

Cylinder arrangement mode: In-line arrangement

Intercooling mode: Water intercooling

Fuel type: Domestic 0# light diesel oil

Speed mode: Electronic speed regulation

Oil type: WD/40

Cylinder diameter / stroke: 111/139mm

Air intake mode: Turbocharge

Displacement: 8.1L

Compression ratio: 16.4：1
