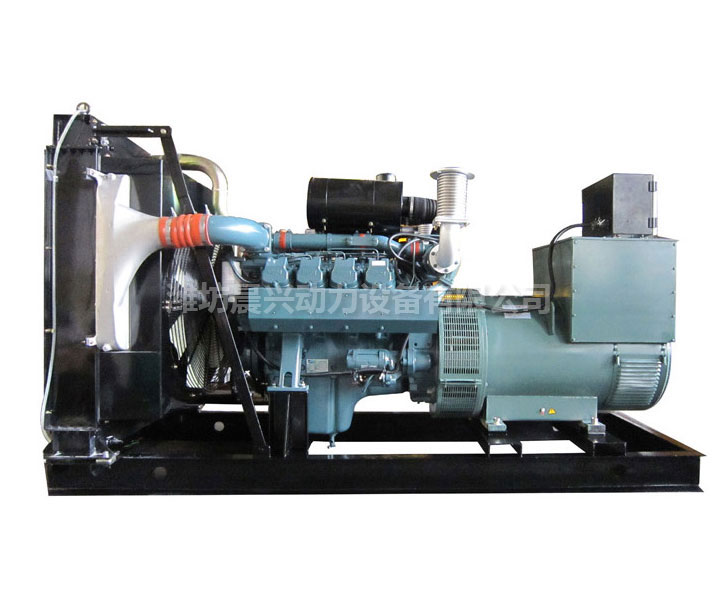

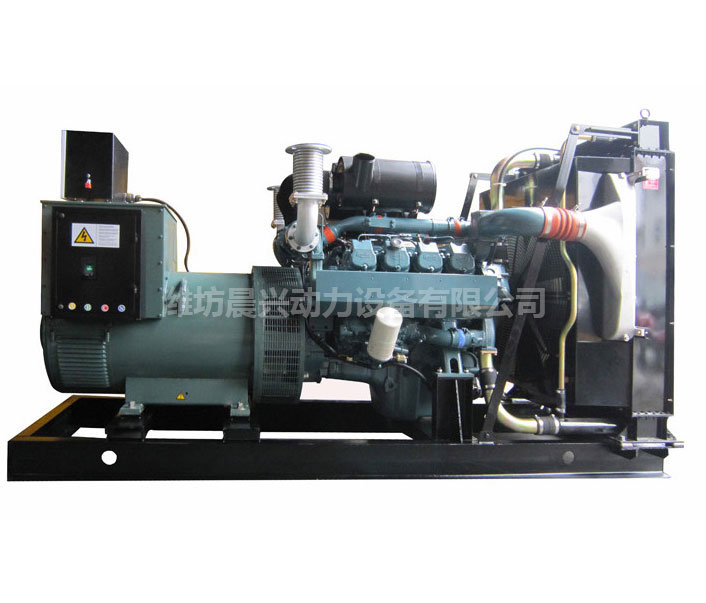

Doosan Daewoo 350kw Diesel Generating Set-P158LE

Technical parameters of South Korea's Daewoo series diesel generating sets

I. Technical specification

（1）Unit model: ZD-350

Normal power（KW）：350

Standby power（KW）：420

Frequency: 50Hz

Output voltage: 400/230V

Revolving speed: 1500rpm

Power factor: COSΦ=0.8 (lag)

Fuel consumption(lir/hr)：48.4

Output current（A）：1008

Phase number/ line number: Three-phase four-wire

Noise LP7m：95db

Appearance dimension （mm）：3450*1389*1305

Weight：4350Kg

（2）Diesel engine:

Brand name: Korea Doosan Daewoo

Manufacturer: Doosan Infracore

Model:P158FE

Cooling mode: Closed water circulation cooling

Starting mode: 24V Direct Current Start

Number of cylinders: 12

Oil supply method: Direct injection

Cylinder arrangement mode: Type V

Intercooling mode: Water intercooling

Fuel type: Domestic 0# light diesel oil

Speed mode: Electronic speed regulation

Oil type: WD/40

Cylinder diameter / stroke: 128/142mm

Displacement: 21.9L

Air intake mode: Turbocharge

Compression ratio: 16.8：1
