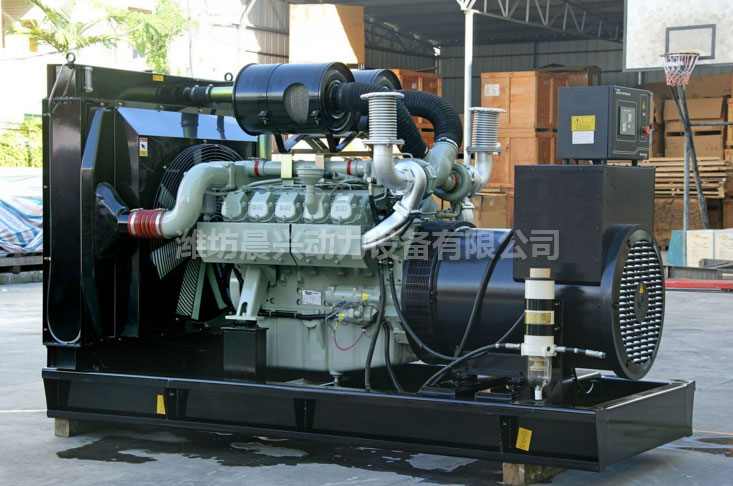

600KW Doosan Daewoo Generating Set

Technical parameters of South Korea's Daewoo series diesel generating sets

（1）Unit model: GF600

Normal power（KW）：600

Standby power（KW）：664

Frequency: 50Hz

Output voltage: 400/230V

Revolving speed: 1500rpm

Power factor: COSΦ=0.8 (lag)

Fuel consumption(lir/hr)：147

Output current（A）：1080

Phase number/ line number: Three-phase four-wire

Noise LP7m：100db

Appearance dimension （mm）：3400*1100*1900

Weight：4500Kg

（2）Diesel engine:

Brand name: Korea Doosan Daewoo

Manufacturer: Doosan Infracore

Model:DP222LB

Cooling mode: Closed water circulation cooling

Starting mode: 24V Direct Current Start

Number of cylinders: 12

Oil supply method: Direct injection

Cylinder arrangement mode: Type V

Intercooling mode:Intercooling (air-to-air)

Fuel type: Domestic 0# light diesel oil

Speed mode: Electronic speed regulation

Oil type: WD/40

Cylinder diameter / stroke: 128/142mm

Air intake mode: Turbocharge

Displacement: 21.927L

Compression ratio: 15：1
