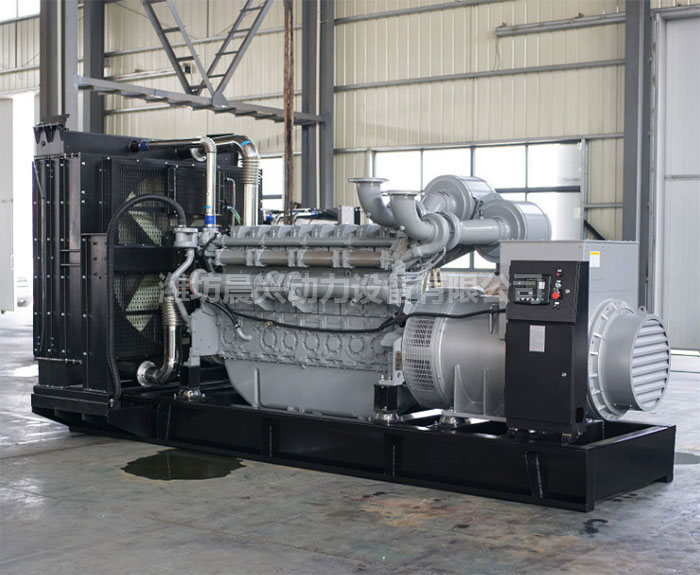

600KW Perkins 4006-23TAG3A

I. Technical Parameters of 4006-23TAG2A Perkins 600KW Diesel Generating Set

1.Unit model:GF-600

2. Power of the unit:600KW

3.Generator model: SF-600-4

4.Frequency:50HZ

5.Voltage:400/220V

6.Power factor:COSΦ=0.8

7.Current:1080A

8.Phase number: Three-phase four-wire

9.Noise: ≤110db

10.Boundary dimension:4100*1750*2200

11.Weight: （KG）:5500

II. Technical Parameters of Perkins 4006-23TAG2A Diesel Engine （600KW）

1.Diesel engine model: 4006-23TAG2A

2.Power: 632KW

3.Cylinder number: 6

4.Cylinder diameter(mm):160

5.Stroke(mm):190

6.Fuel consumption (g/Kw*h)：210

7.Speed regulation mode: Electronic speed regulation

8.Speed （r/min）:1500

9.Air intake mode: Turbocharging, air-to-air charging and intercooling

10.Cooling mode: Closed water cooling

11.Diesel engine manufacturer: Perkins Engine Co., Ltd.

12.Fuel number: No.0 diesel oil

13.Starting mode: 24V Direct Current Start

14.Diesel engine oil supply way: EFI

15.Oil type：WD/40

16.Cylinder total emissions L: 22.921

17.Compression ratio: 13.6:1

18.Type：4Stroke

19.Cylinder arrangement mode: In-line arrangement

20.Capacity of lubricating oil L: 113.4

21.Cooling system capacity L: 105

22.Intercooling mode: Water intercooling

23.Lubricating mode: Splash and pressure

24.Lubricating oil consumption (g/Kw*h)：2

25.Net weight: 2524kg

26.Size:3027*1706*1964
