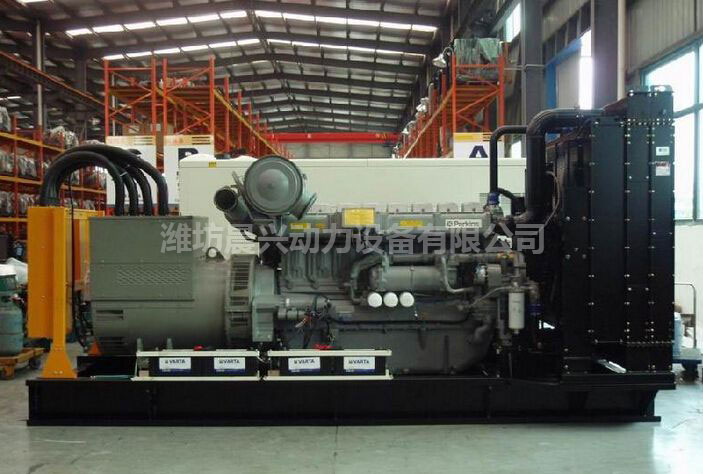

700KW Perkins Generating Set

I. Technical Parameters of 4008TAG1A Perkins 700KW Diesel Generating Set

1.Unit model:GF-700

2. Power of the unit:700KW

3.Generator model: SF-700-4

4.Frequency:50HZ

5.Voltage:400/220V

6.Power factor:COSΦ=0.8

7.Current:1260A

8.Phase number: Three-phase four-wire

9.Noise: ≤110db

10.Boundary dimension:4700*2100*2350

11.Weight: （KG）:7700

II. Technical Parameters of Perkins 4008TAG1A Diesel Engine （700KW）

1.Diesel engine model: 4008TAG1A

2.Power: 767KW

3.Cylinder number: 8

4.Cylinder diameter(mm):160

5.Stroke(mm):190

6.Fuel consumption (g/Kw*h)：206

7.Speed regulation mode: Electronic speed regulation

8.Speed （r/min）:1500

9.Air intake mode: Turbocharging, air-to-air charging and intercooling

10.Cooling mode: Closed water cooling

11.Diesel engine manufacturer: Perkins Engine Co., Ltd.

12.Fuel number: No.0 diesel oil

13.Starting mode: 24V Direct Current Start

14.Diesel engine oil supply way: EFI

15.Oil type：WD/40

16.Cylinder total emissions L: 30.5

17.Compression ratio: 13.6:1

18.Cylinder arrangement mode: In-line arrangement

19.Capacity of lubricating oil L: 165.6

20.Cooling system capacity L: 149

21.Intercooling mode: Water intercooling

22.Type：4Stroke

23.Lubricating mode: Splash and pressure

24.Net weight: 4270kg

25.Size:3852*2046*2067mm
