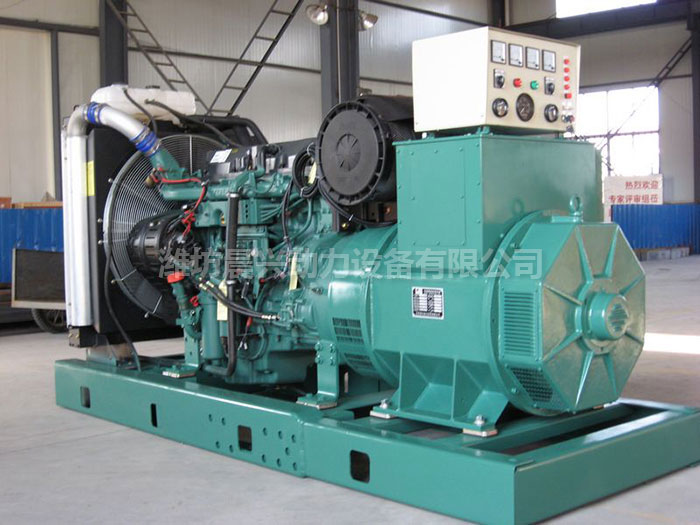

250KW Volvo Generating Set

Volvo diesel generating set technical parameters

（1）Unit model: GF250

Normal power (KW): 250

Standby power (KW): 252

Frequency: 50Hz

Output voltage: 400/230V

Revolving speed: 1500rpm

Power factor: COSΦ=0.8 (lag)

Unit fuel consumption (g/Kw*h)：198

Output current（A）：450

Phase number/ line number: Three-phase four-wire

Noise LP7m: 98db

Outline dimensions（mm）：2450*1000*1700

Weight: 2500Kg

（2）Diesel engine:

Brand name: Volvo

Manufacturer: Swedish Volvo

Model: TAD1341GE

Cooling start: Closed water cooling

Starting mode: 24V Direct Current Start

Number of cylinders: 6

Cylinder total emissions L: 12.13

Oil supply method: Direct injection

Cylinder arrangement mode: Stand upright

Intercooling mode: Water intercooling

Fuel type: Domestic 0# light diesel oil

Speed mode: Electronic speed regulation

Compression ratio: 17.5：1

Oil type: WD/40

Cylinder diameter / stroke: 131/150mm

Air intake mode: Turbocharge
