Volvo Generating Set

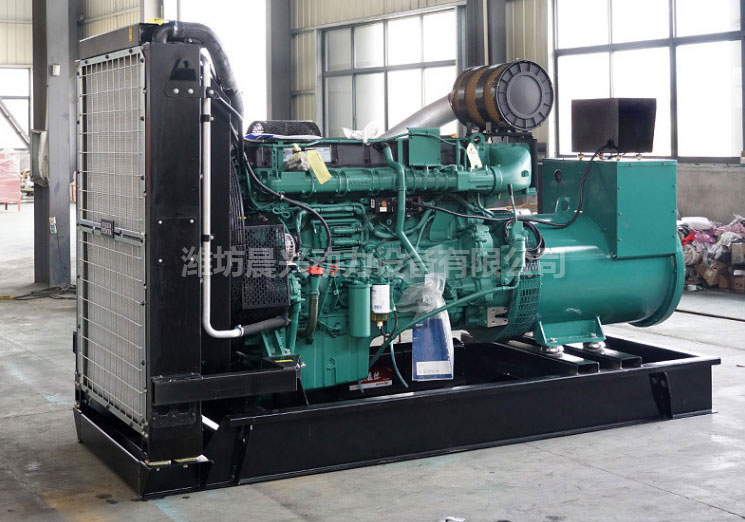

400KW Generating Set Volvo TAD1641GE

Date: 2018-06-27 18:30:21 Click:

Volvo diesel generating set technical parameters

I. Technical specification

(1)Unit modelZD-400

Normal power (KW): 400

Standby power (KW): 445

Frequency: 50Hz

Output voltage: 400/230V

Revolving speed: 1500rpm

Power factor: COSΦ=0.8 (lag)

Unit fuel consumption (g/Kw*h):198

Output current(A):720

Phase number/ line number: Three-phase four-wire

Noise LP7m: 95db

Outline dimensions(mm):2600*1310*1790

Weight: 3300Kg

(2)Diesel engine:

Brand name: Volvo

Manufacturer: Swedish Volvo

Model: TAD1641GE

Cooling start: Closed water cooling

Starting mode: 24V Direct Current Start

Number of cylinders: 6

Cylinder total emissions L: 16.12

Oil supply method: Direct injection

Cylinder arrangement mode: Stand upright

Intercooling mode: Water intercooling

Fuel type: Domestic 0# light diesel oil

Speed mode: EFI

Compression ratio: 16.5:1

Oil type: WD/40

Cylinder diameter / stroke: 144/165mm

Air intake mode: Turbocharge
